Beta 8287 - Schroefdraad terminals Roestvaststaal steel AISI 316
De Beta 8287: LABORATORIUM TEST VERKRIJGBARE CERTIFICATEN. Chemische analyse. Treksterkte test.
Kenmerken
- Chemische analyse
- Treksterkte test
- Technische product specificaties
- Test rapport UNI EN10204 type 2.2
Specificaties (8 varianten)

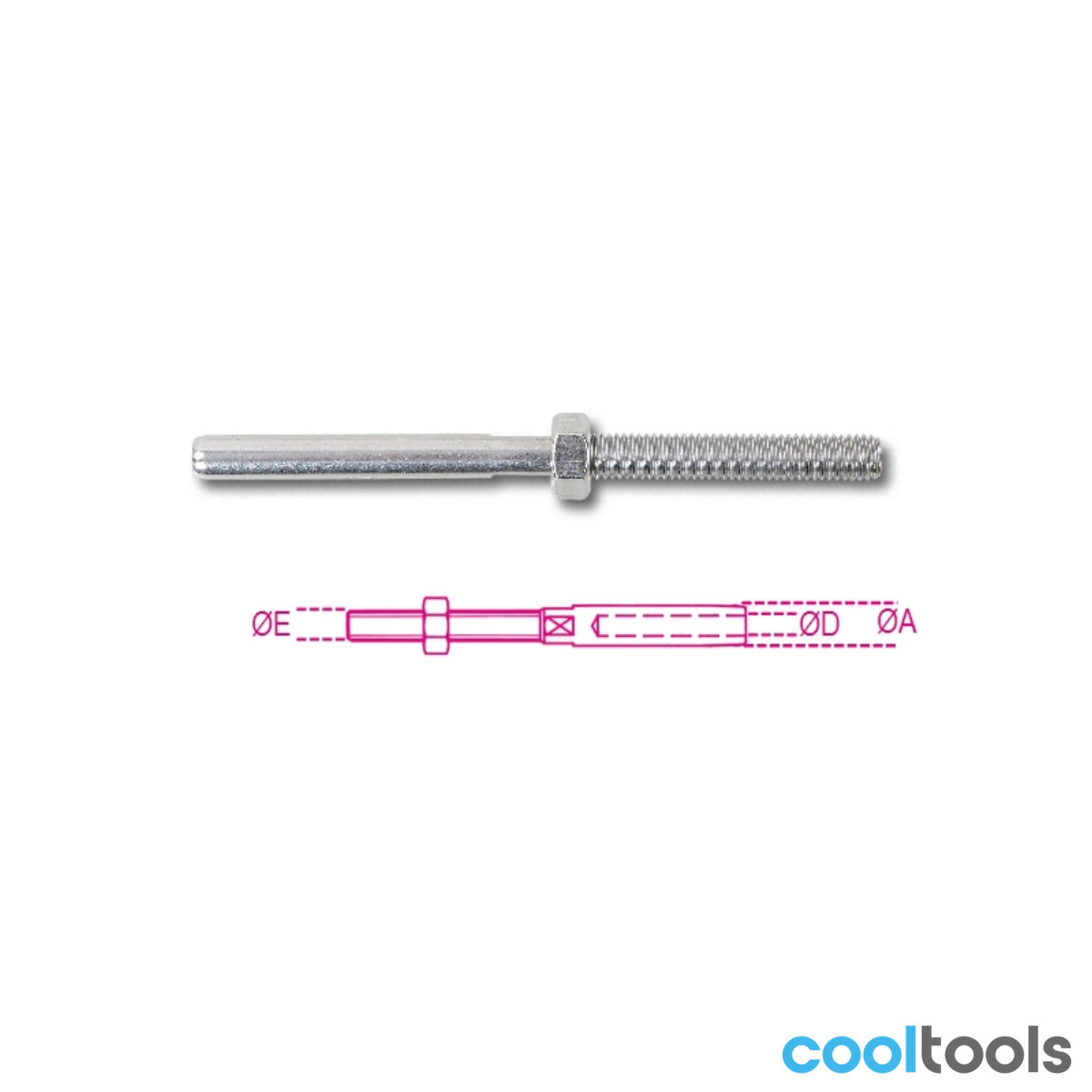

| Art. | SKU | ø D M | ø A mm | E mm | WFL kg | B mm | C mm | F mm | G mm | BF kg |
|---|---|---|---|---|---|---|---|---|---|---|
| 8287 3 | 082870203 | 3 | 6,2 | M6 | 180 | 100 | 46 | 5 | 6 | 760 |
| 8287 4 | 082870204 | 4 | 7,5 | M8 | 200 | 116 | 54 | 6 | 10 | 1800 |
| 8287 5 | 082870205 | 5 | 8,7 | M10 | 330 | 131 | 64 | 7 | 10 | 3000 |
| 8287 6 | 082870206 | 6 | 12,6 | M12 | 720 | 161 | 75 | 10 | 12 | 4500 |
| 8287 7 | 082870207 | 7 | 12,6 | M14 | 850 | 161 | 75 | 10 | 11 | 5025 |
| 8287 8 | 082870208 | 8 | 16 | M16 | 1120 | 215 | 98 | 13 | 14 | 9500 |
| 8287 10 | 082870210 | 10 | 18 | M16 | 1300 | 215 | 98 | 13 | 14 | 9750 |
| 8287 12 | 082870212 | 12 | 20 | M20 | 2400 | 240 | 120 | 17 | 14 | 12950 |
Merk: Beta Tools
Artikelnummer: 8287
Categorie: Draad- en kabelaccessoires › R.v.s. artikelen
| Breedte (mm) | 10 or 12 or 6 or 7 or 8 or 4 or 5 or 3 |
| Merk | Beta |
