Beta 8274 - Karabijn haken Roestvaststaal AISI 316
De Beta 8274: LABORATORIUM TEST VERKRIJGBARE CERTIFICATEN. Chemische analyse. Treksterkte test.
Kenmerken
- Chemische analyse
- Treksterkte test
- Technische product specificaties
- Test rapport UNI EN10204 type 2.2
Specificaties (10 varianten)

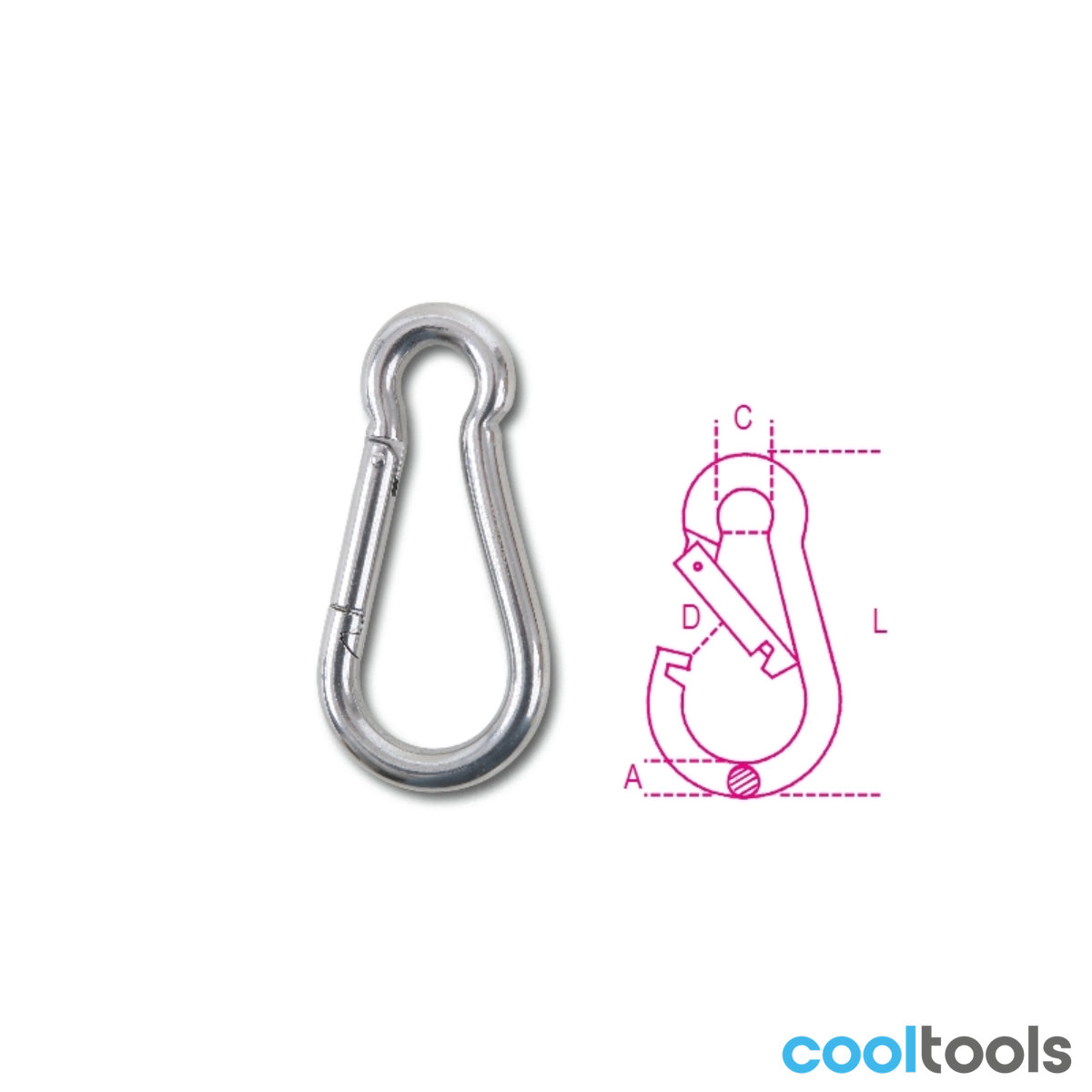

| Art. | SKU | ø A x L mm | ø C mm | D mm | WFL kg | B mm | BF kg |
|---|---|---|---|---|---|---|---|
| 8274 4,5X40 | 082740204 | 4,5x40 | 6,5 | 6 | 20 | 20 | 140 |
| 8274 5X50 | 082740205 | 5x50 | 7 | 6,5 | 30 | 25 | 180 |
| 8274 6X60 | 082740206 | 6x60 | 8,5 | 7,5 | 40 | 30 | 260 |
| 8274 7X70 | 082740207 | 7x70 | 10 | 9 | 60 | 35 | 360 |
| 8274 8X80 | 082740208 | 8x80 | 12 | 10 | 75 | 40 | 500 |
| 8274 9X90 | 082740209 | 9x90 | 12,5 | 10,5 | 100 | 45 | 600 |
| 8274 10X100 | 082740210 | 10x100 | 15 | 13 | 120 | 50 | 720 |
| 8274 11X120 | 082740211 | 11x120 | 19 | 18 | 140 | 58 | 800 |
| 8274 12X140 | 082740212 | 12x140 | 22 | 21 | 140 | 64 | 900 |
| 8274 13X160 | 082740213 | 13x160 | 22 | 26 | 200 | 74 | 1000 |
Merk: Beta Tools
Artikelnummer: 8274
Categorie: Draad- en kabelaccessoires › R.v.s. artikelen
| Breedte (mm) | 10X100 or 11X120 or 12X140 or 13X160 or 4,5X40 or 5X50 or 6X60 or 7X70 or 8X80 or 9X90 |
| Merk | Beta |
8274_nl.pdf
Download
