Beta 8225 - D-sluitingen Roestvaststaal AISI 316
De Beta 8225: LABORATORIUM TEST VERKRIJGBARE CERTIFICATEN. Chemische analyse. Treksterkte test.
Kenmerken
- Chemische analyse
- Treksterkte test
- Technische product specificaties
- Test rapport UNI EN10204 type 2.2
Specificaties (10 varianten)

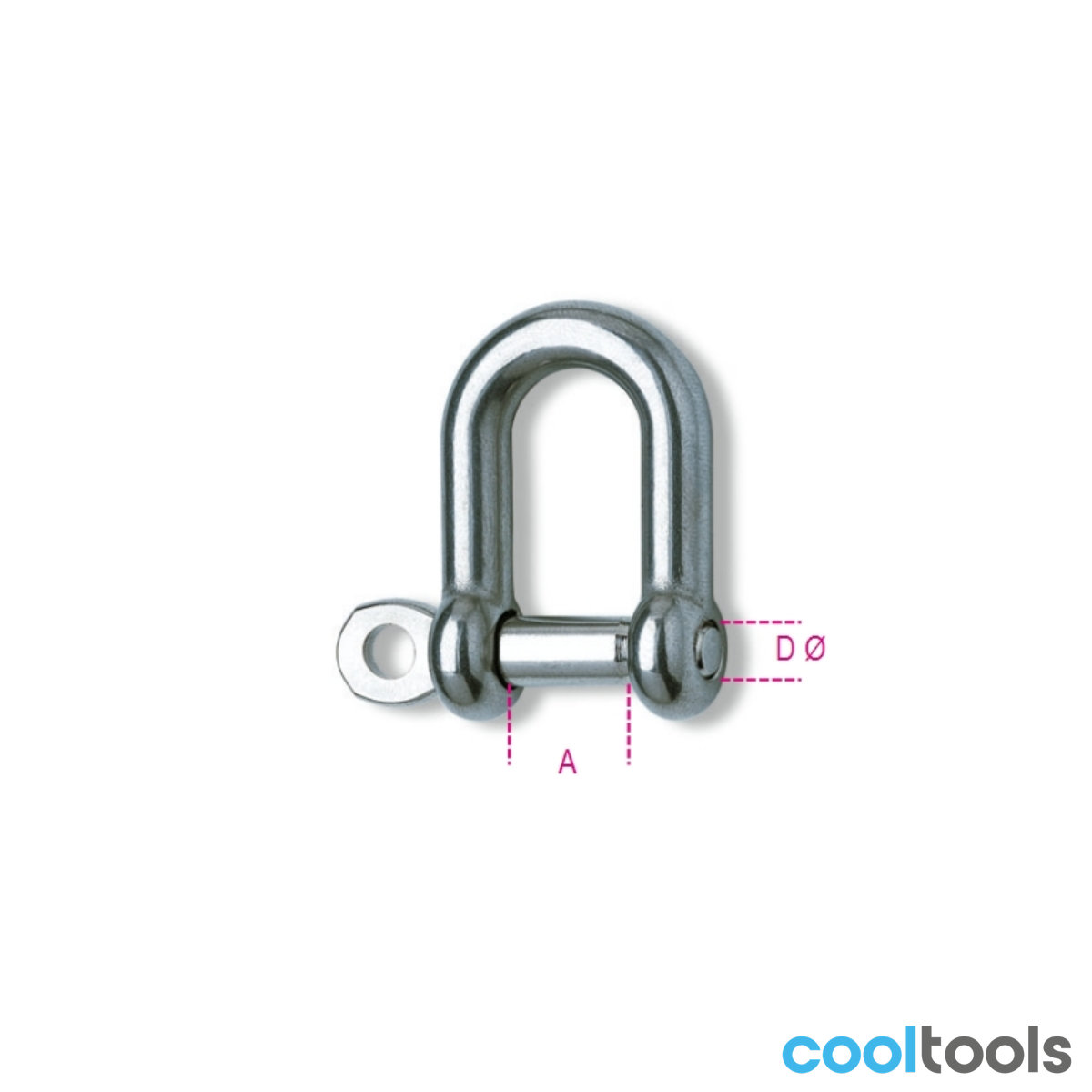

| Art. | SKU | ø D mm | " | A mm | WFL kg | B mm | BF kg |
|---|---|---|---|---|---|---|---|
| 8225 4 | 082250204 | 4 | 5/32 | 8 | 50 | 15 | 540 |
| 8225 5 | 082250205 | 5 | 3/16 | 11 | 70 | 17 | 1000 |
| 8225 6 | 082250206 | 6 | 1/4 | 13 | 100 | 22 | 1700 |
| 8225 8 | 082250208 | 8 | 5/16 | 17 | 250 | 27 | 2500 |
| 8225 10 | 082250210 | 10 | 3/8 | 21 | 400 | 35 | 4100 |
| 8225 12 | 082250212 | 12 | 1/2 | 25 | 600 | 42 | 5400 |
| 8225 16 | 082250216 | 16 | 5/8 | 32 | 1000 | 56 | 6800 |
| 8225 19 | 082250219 | 19 | 3/4 | 38 | 1600 | 67 | 10000 |
| 8225 22 | 082250222 | 22 | 7/8 | 43 | 2000 | 77 | 16140 |
| 8225 25 | 082250225 | 25 | 1 | 46 | 2800 | 85 | 21000 |
Merk: Beta Tools
Artikelnummer: 8225
Categorie: Draad- en kabelaccessoires › R.v.s. artikelen
| Maat (inch) | 10 or 12 or 16 or 19 or 22 or 4 or 5 or 6 or 8 or 25 |
| Merk | Beta |
