Beta 8032 - Harpsluitingen voor hef werkzaamheden, staal met hoge treksterkte, verzonken vierkanten pin. Gegloeid en gegalvaniseerd.
De Beta 8032: TECHNICAL DATA LABORATORY TESTS AVAILABLE CERTIFICATES. Minimum safety factor: 6. Heat treatment: hardening and tempering. Vervaardigd conform CE.
Kenmerken
- minimum safety factor: 6
- heat treatment: hardening and tempering
- traceability code on pin and body
- chemical analysis
- metallographic analysis
- tensile test
- fatigue test (min. 20,000 cycles)
- proof load test (2 x WLL)
- Technical Product Specifications
- Test Report UNI EN10204 type 2.2
- Inspection Certificate UNI EN10204 type 3.1
- CE Declaration of Conformity
Specificaties (5 varianten)

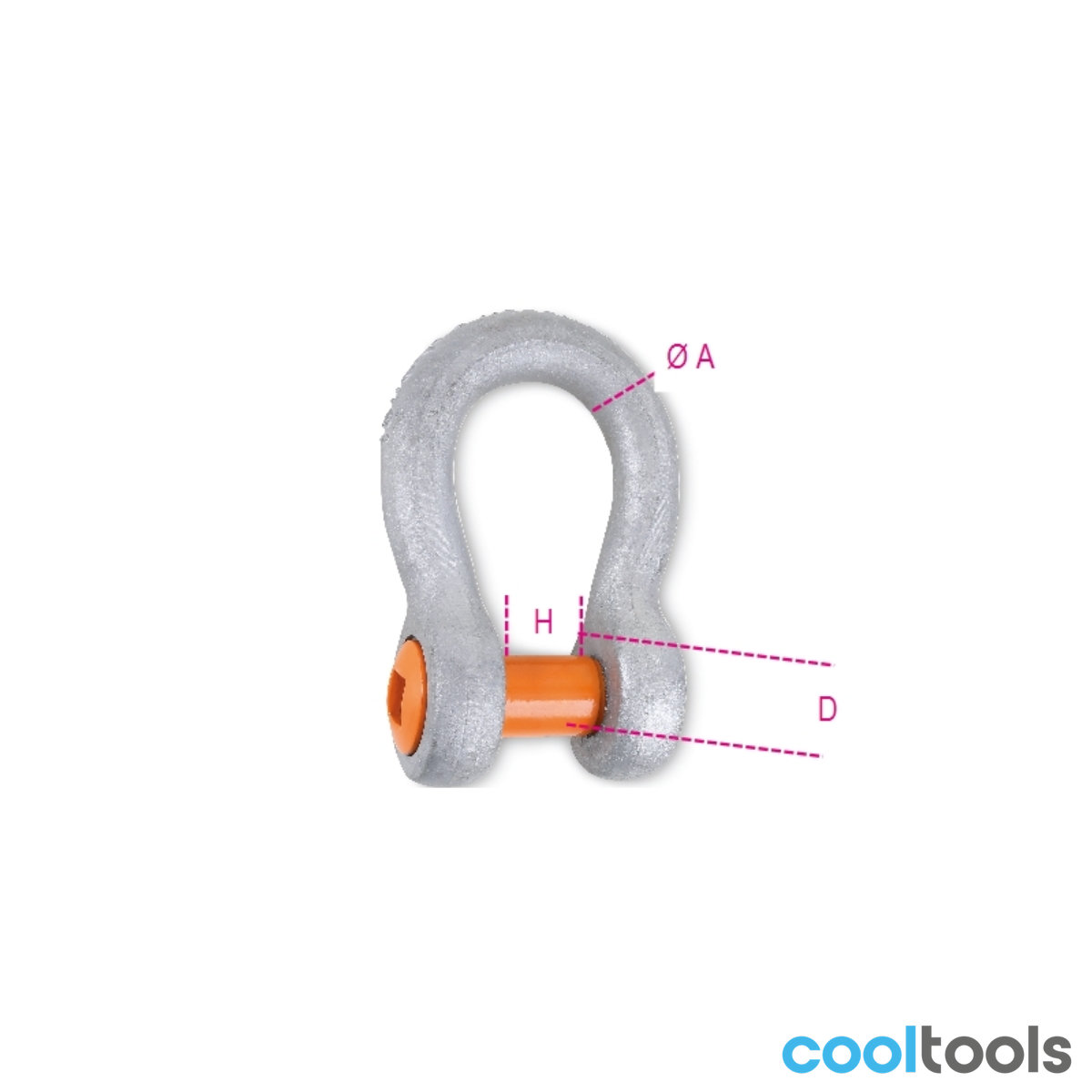

| Art. | SKU | ØD mm | ØA mm | H mm | WLL kg |
|---|---|---|---|---|---|
| 8032 T1 | 080320010 | 11 | 10 | 17 | 1000 |
| 8032 T2 | 080320012 | 16 | 13 | 21 | 2000 |
| 8032 T3,25 | 080320016 | 19 | 16 | 27 | 3250 |
| 8032 T4,75 | 080320020 | 22 | 19 | 32 | 4750 |
| 8032 T6,5 | 080320022 | 25 | 22 | 37 | 6500 |
Normen: CE
Merk: Beta Tools
Artikelnummer: 8032
Categorie: Draad- en kabelaccessoires › D-sluitingen
| Hoogte (mm) | T1 or T2 or T3,25 or T4,75 or T6,5 |
| Merk | Beta |
